Product description
Marshall CV730 - Model: CV730 - Farbe: Black
Marshall CV730-BK / -WH
IP-enabled UHD PTZ camera with 30x zoom
Update! Compatible with USB 3.0, Skype & Zoom through firmware update.
The CV730 allows you to output Ultra HD video simultaneously via 3G-SDI, HDMI and IP.

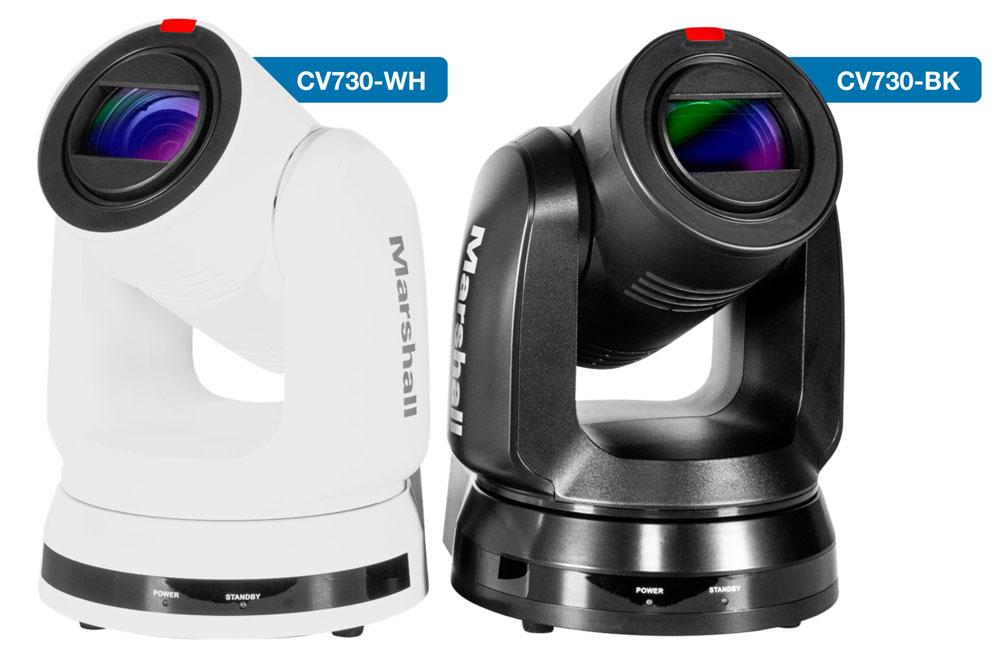

The camera is available in two colors
- White (CV730-NDIW)
- Black (CV730-NDI)
Sensor & Lens
- 8.5 megapixel sensor (1/1.8") UHD
- 30x optical zoom (6.5~202mm) - 65° horizontal AOV
- Minimum Illumination: 0.1 lux (F1.6, 50IRE, 30fps)
Resolution and frame rates
- 3840 x 2160p (60 / 59.94 / 50 / 29.97 /25 fps)
- 1920 x 1080p (60 / 59.94 / 50 / 29.97 /25 fps)
- 1280 x 720p (60 / 59.94 / 50 / 29.97 /25 fps)

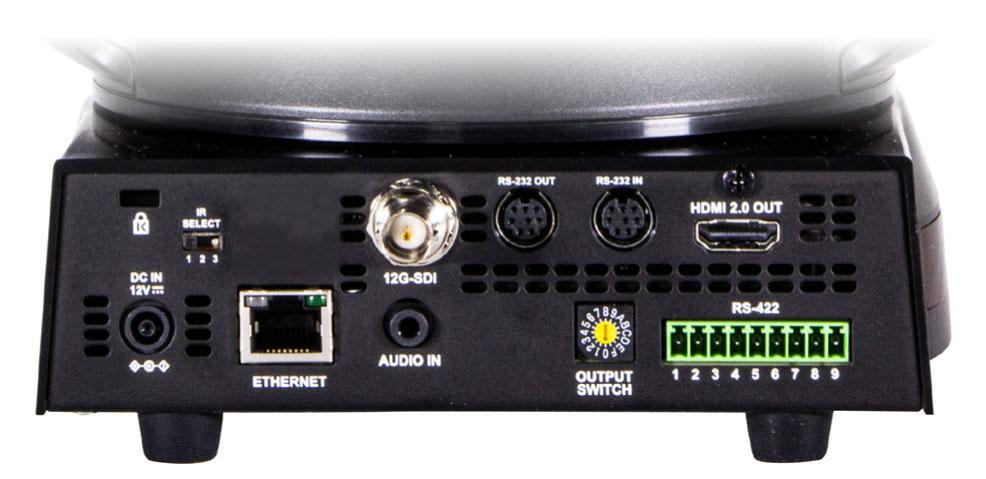

Connections
- IP
- 12G-SDI
- HDMI 2.0
- RS232
- RS422
- 3.5mm audio input with passthrough
Features
- IP (H.265/H.264/MJPEG)
- PoE++ (simultaneous transmission of video & control signals and power supply via CAT cable)
- Front Tally Light
Dimensions & Weight
235mm (H) x 190mm (W) x 190mm (D)
2.025g
Scope of delivery
- camera
- Adapter plate for ceiling mounting

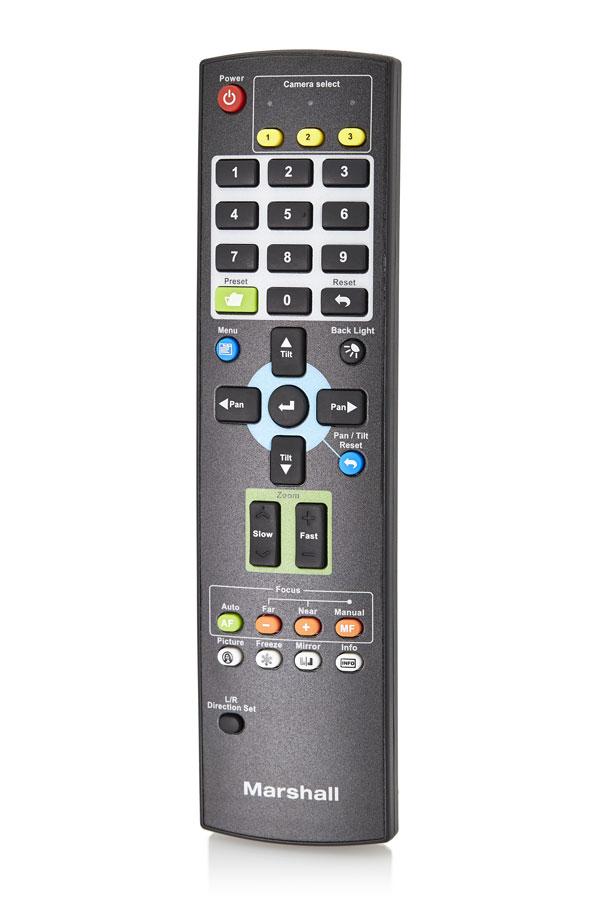

- Infrared remote control
- Power adapter & power cord
With Facebook Live in a few steps
1. activate Facebook Live video
2. copy server URL & streamkey from Facebook

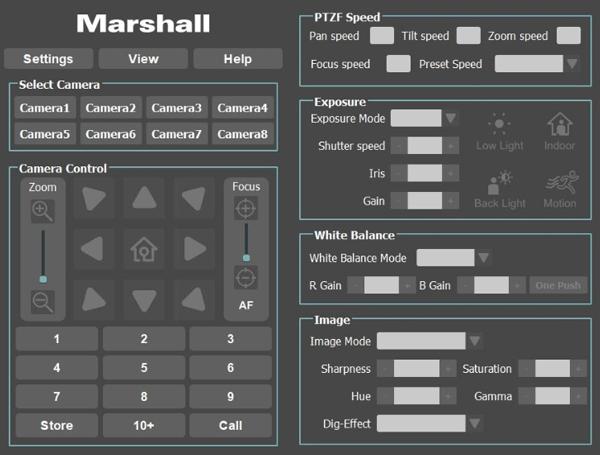

3. paste server URL & streamkey into GUI of camera
4. done
You can download the instructions as a PDF above the description.
With OBS Live in a few steps
- You can find the manual under the tab -> OBS Plugin Manual as PDF for download.
- You can download the plugin software as a ZIP file from Marshall's website.
